CRx6 6-Way MaxRC COFDM Receiver
- Integrated 6-way diversity COFDM receiver
- High Dynamic Range
- MPEG4/MPEG2 Auto Detect
- IP streaming of MPEG TS
- Web page control
The Vislink SectorPod antenna is a cutting-edge solution designed to meet the demanding needs of modern remote communication networks. Engineered for superior performance and ease of operation, the SectorPod offers exceptional signal clarity and reliability, ensuring seamless connectivity in even the most challenging environments.

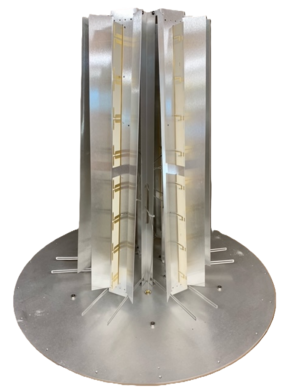

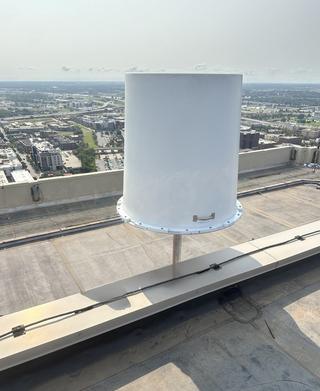

SectorPod Antenna
Key Features:
- High Gain Performance: Delivers robust signal strength and extended coverage, making it ideal for long-range communication.
- No Remote Site Controller: System does not require a Remote Site Controller (RSC) or expensive control cable.
- Durable Construction: Built to withstand harsh weather conditions, the SectorPod is perfect for both urban and remote installations.
- Easy Operation: With its user-friendly GUI, the requirement for a dedicated operator is no longer needed
- Easy Installation: With its user-friendly design, the SectorPod can be quickly and easily deployed, minimizing downtime and operational costs.
- Versatile Applications: Suitable for a wide range of applications, including broadcast, public safety, and military communications.
Quantum Receiver
- IP-Native Wireless Camera Receiver
- Diversity LMS-T and DVB-T reception with up to 16x RF inputs
- 4K UHD and HD decoding with HDR support
- IP transport stream input and output with SMPTE 2022-2 and SRT support
Associated SectorPod Products:
Key Specifications:
- Description: 6x 60-degree sector array
- Adjustability: Sectors are individually adjustable from 0 degrees to +15 degrees elevation uptilt
- Connector: Type “N” (F), 1 per sector
- Electrical (Per Sector):
- Frequency: 2.0 - 2.5 GHz
- VSWR: 1.5:1 max
- Polarity: Vertical
- Gain: 17 dBi
- Beamwidth, Vertical: 8 degrees
- Beamwidth, Horizontal: 60 degrees
- Weight: Approx. 75 lbs.
